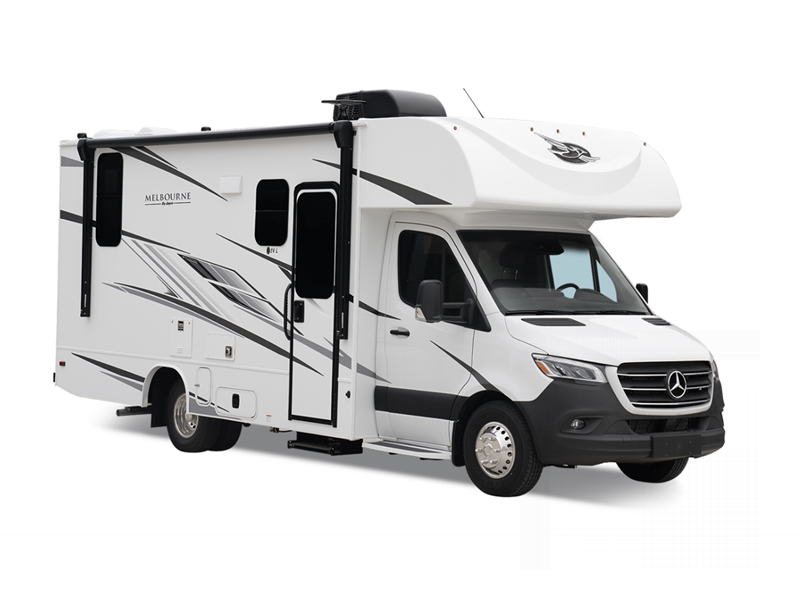

The compact Melbourne Class C diesel motorhome by Jayco allows you to travel for quick getaways and long adventures in comfort with your spouse or your smaller family!



Each motorhome offers a Mercedes-Benz 3500 chassis with 170 inch wheelbase and a V-6 Turbo diesel engine giving you 188 HP to get around town and on the open highway easily.  The swivel driver and passenger seats offer more seating in the living area once at your destination and the 83 inch interior ceiling height offers a spacious RV with hardwood cabinet doors and drawers, an overhead bunk with 750 lb. capacity, and much more!



Whether you are planner or a last-minute kind of traveler, any compact Melbourne Class C diesel motorhome by Jayco will offer power, sophistication, comfort and functionality for years to come!

  • Melbourne 24L

    Melbourne 24L Floorplan Image

    Take a Virtual Tour

    Jayco Melbourne Class C diesel motorhome 24L highlights: U-Shaped Dinette ... more about Melbourne 24L

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Huntington

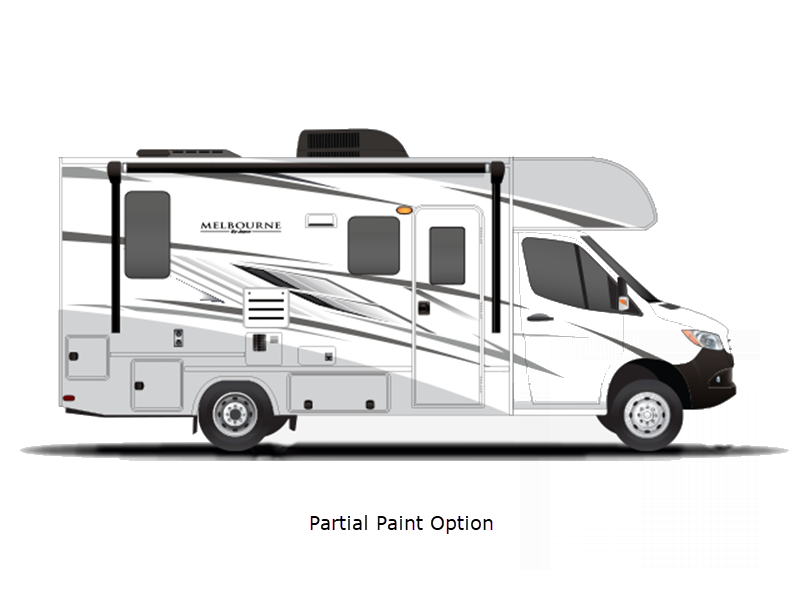

    Exterior Color Standard Graphics; Full-Body Paint: Murifield, Pinehurst, Waterville
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Tire Size 215/85R16
    Furnace BTU 30000 btu
    Generator Onan 3,600-watt LP
    Fuel Type Diesel
    Engine 3.0L V6 BlueTEC Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    Basement Storage 17 cu. ft.
    TV Info LR LED TV
    Awning Info 14' Electric w/LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Melbourne 24T

    Melbourne 24T Floorplan Image

    Take a Virtual Tour

    Jayco Melbourne Class C diesel motorhome 24T highlights: Two Twin Beds Abundant ... more about Melbourne 24T

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 2 in
    Ext Width 8 ft
    Ext Height 11 ft 5 in
    Int Height 6 ft 11 in
    Interior Color Huntington
    Exterior Color Standard Graphics; Full-Body Paint: Murifield, Pinehurst, Waterville
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 31 gals
    Tire Size 215/85R16
    Furnace BTU 30000 btu
    Generator Onan 3,600-watt LP
    Fuel Type Diesel
    Engine 3.0L V6 BlueTEC Diesel
    Chassis Mercedes-Benz 3500
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Two Twin
    Torque 325 ft-lb
    Refrigerator Size 6 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 19" x 28" x 34"
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 13500 btu
    TV Info LR LED TV
    Awning Info 14' Electric w/LED Lights
    Gross Combined Weight 15250 lbs
    Electrical Service 30 amp

    Similar Floorplans

Melbourne Features:

Standard Features



Customer Value Package

  • One-piece, seamless, fiberglass front cap
  • Frameless windows
  • Heated holding tanks (12V pads)
  • Heated, remote-controlled, side view mirrors
  • Electric patio awning with LED lights
  • Backup and side-view camera
  • Remote keyless entry

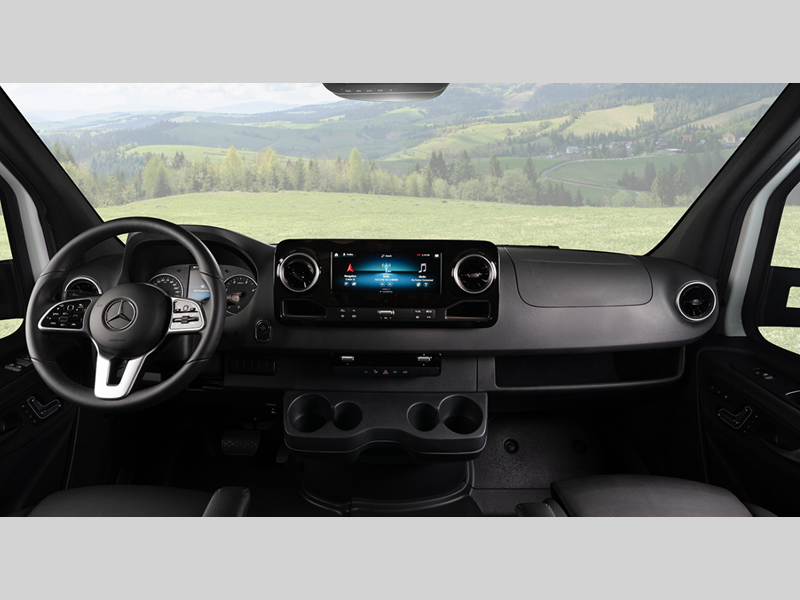

  • Sony® infotainment center with Apple CarPlay® and Android Auto™
  • Swivel driver and passenger seats with boosters

Driving Equipment

  • Mercedes-Benz® 3500 chassis with 170 in. wheelbase
  • GVWR- 11,030 lb.
  • GCWR- 15,250 lb.
  • V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
  • 7-speed automatic transmission
  • 220-amp alternator
  • E-rated highway tires- 215/85R16
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000 lb. rear hitch receiver with dual connector
  • 7-pin plug
  • 12V chassis battery
  • 26.4 gal. fuel tank
  • 5.8 gal. DEF tank
  • Driver and passenger airbags
  • Power windows and door locks
  • Tilt steering wheel
  • A/C and cruise control
  • Auxiliary start switch
  • Privacy curtains for cab area

Exterior Equipment

  • Stronghold VBL™ Vacuum-Bond laminated roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • TPO laminated roof
  • Fiberglass running boards
  • Fiberglass exterior walls with vinyl graphics
  • Electric stabilizer jacks
  • Slideout cover awnings
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • 12V house battery
  • Full pass-through storage compartment (24K)
  • Exterior utility center
  • Winterization drain system
  • Black tank flush
  • Outside shower
  • 12V demand water pump
  • Onan® 3,600-watt LP generator
  • 30-amp electrical service
  • Solar prep
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Flush-mount LED marker lights
  • Third brake light
  • Porch light
  • 4 in. tube bumper with sewer hose storage

Interior Equipment

  • 83 in. interior ceiling height with padded vinyl ceiling
  • High-intensity, LED ceiling lights
  • LED-lit slideout fascia
  • Hardwood cabinet doors and drawers
  • Ball-bearing drawer guides
  • Jayco-exclusive easy-operation legless dinette table (24K)

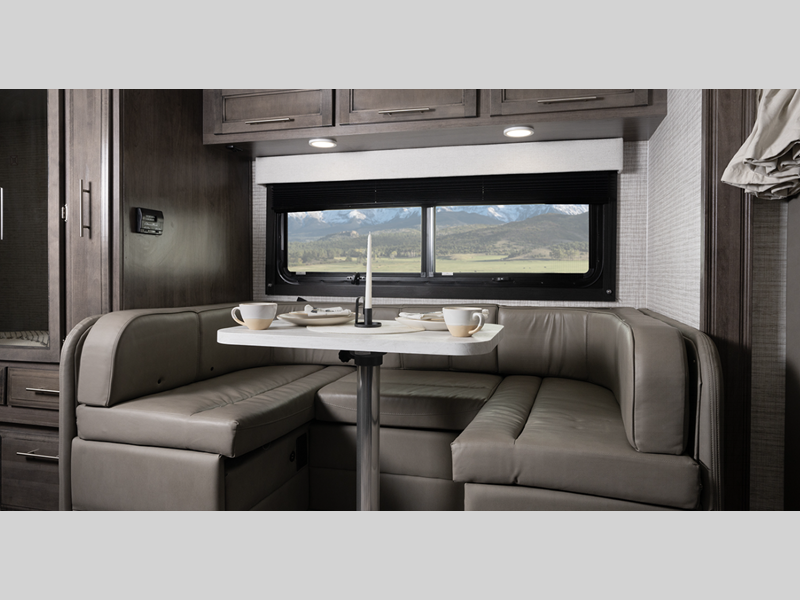

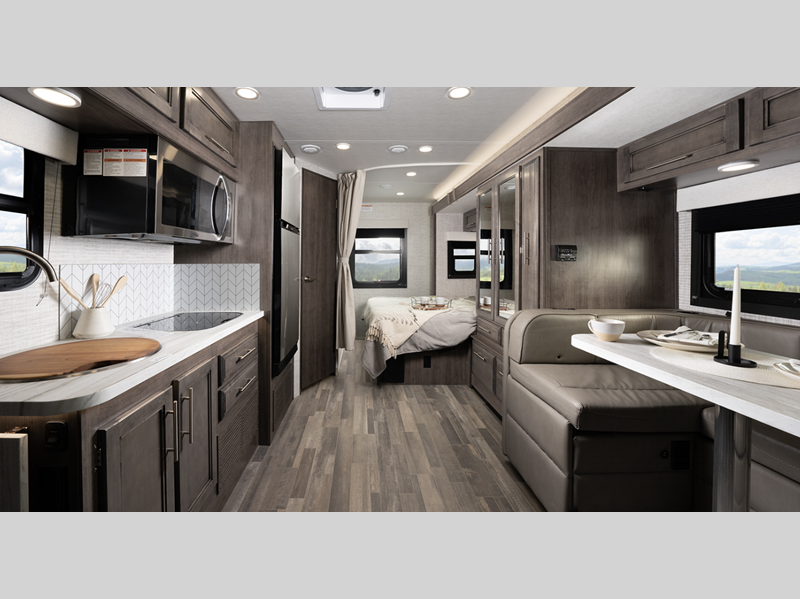

  • U-shaped dinette with stow away pedestal legs (24L)
  • 12V USB charging station in dinette area
  • 2-point lap safety belts in all designated seating locations
  • Pleated blackout shades
  • 13,500 BTU A/C
  • 30,000 BTU auto-ignition ducted furnace
  • 6 gal. gas/electric water heater and water heater bypass
  • Powered roof vent in living area with wall switch
  • LED living room TV
  • Blu-Ray™ player in living area
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 8 cu.ft. gas/electric refrigerator
  • Suburban 2-burner, drop-in cooktop with flush cover
  • Convection microwave
  • LED-lit pressed countertops
  • Flip-up countertop extension (select models)

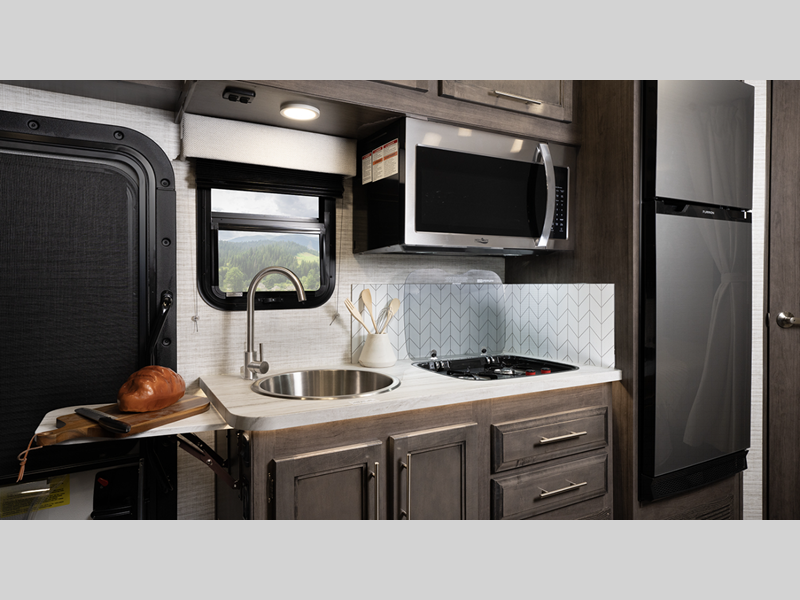

  • Stainless-steel sink with wooden cover/cutting board
  • Decorative kitchen backsplash
  • Water filtration system

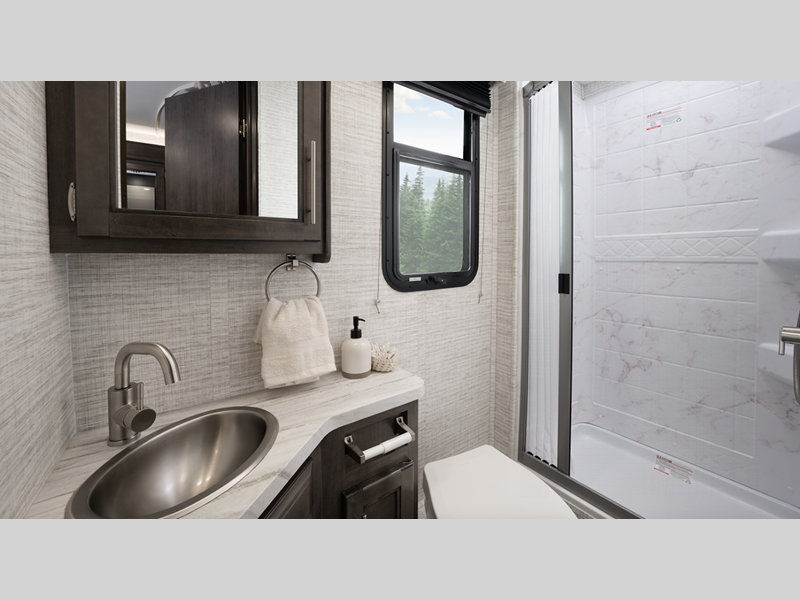

  • Shower with decorative surround and skylight
  • Stainless-steel bathroom sink
  • Toilet with foot flush
  • Powered roof vent in bathroom with wall switch

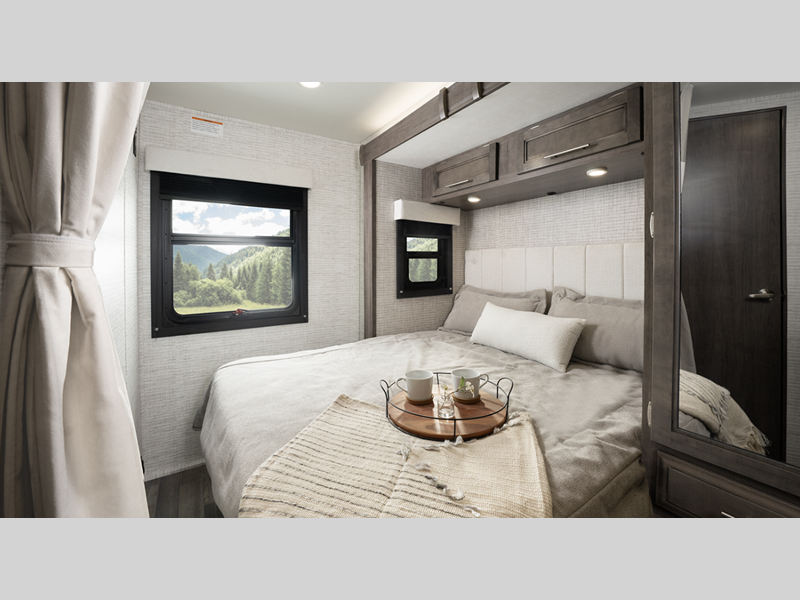

  • Queen-sized bed with bedspread (24K, 24L)
  • (2) Twin-sized beds (24T)
  • Under-bed storage (select models)
  • Bedroom TV prep
  • Large wardrobes

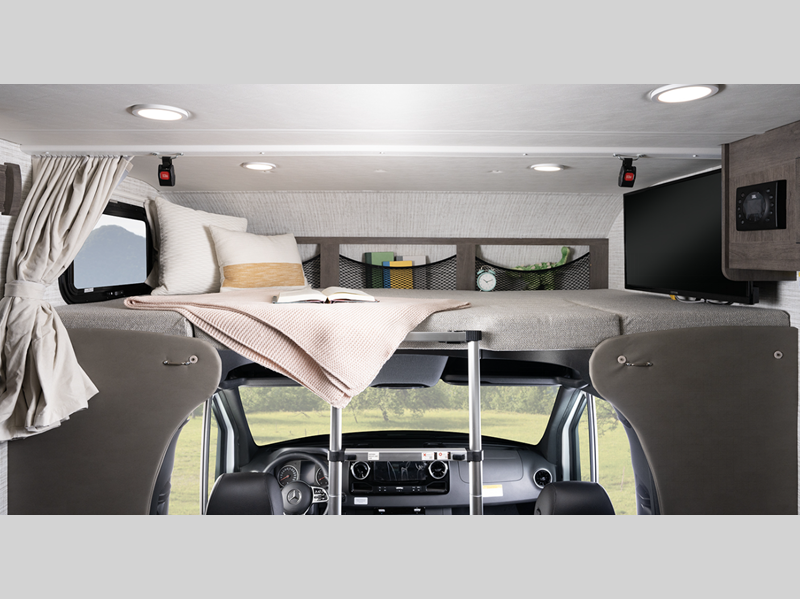

  • Overhead bunk with 750 lb. capacity
  • Smoke alarm
  • Carbon monoxide detector

Exterior Decor

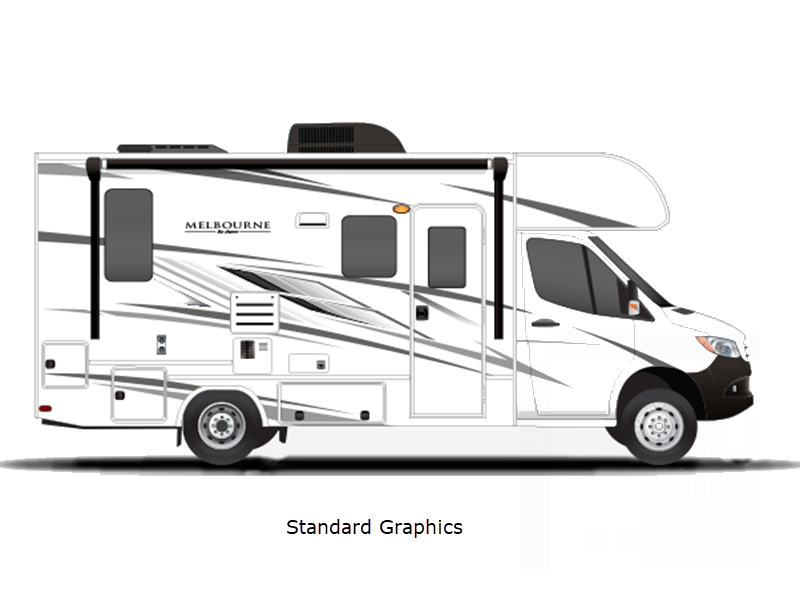

  • Standard Graphics
  • Murifield Full-Body Paint
  • Pinehurst Full-Body Paint
  • Waterville Full-Body Paint

Decor

  • Huntington

Options

  • Canadian Standards
  • CSA Chassis Upcharge
  • Customer Value Package

Backup camera, electric awning with LED lights, frameless windows, infotainment system, keyless cab entry, remote controlled and heated mirrors, swivel driver and passenger seats, tank heating pads

  • Front Entertainment Center with 32" LED HDTV
  • Sun Folding Windshield Shade
  • Hydraulic Leveling Jacks
  • Theater Seating ILO Dinette (24K, 24L)
  • 3.2 KW Diesel Generator

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
